ViewLLM

Filtering Attention Heads through Automable Interpretability Experiments

Amiri Hayes, Jacob Andreas, Belinda Li

— ADDITIONAL INFO —

Abstract Poster GitHub Report Library: ViewLLM

THREE PROGRAM EXAMPLES:

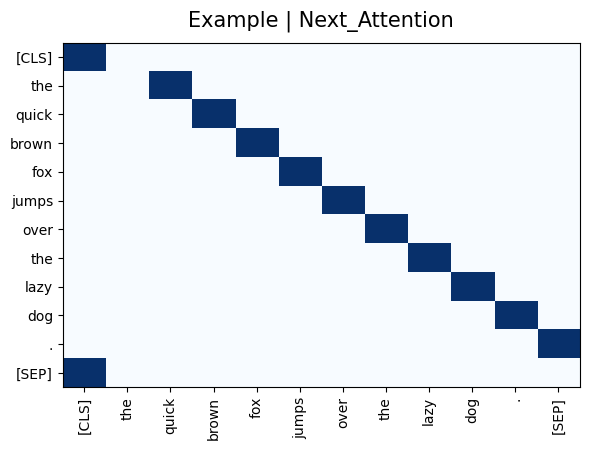

# 1/3. NEXT ATTENTION PROGRAM
# Program Goal: predicts what head activations for head
# where tokens only look at next tokens in sequence.

def next_attention(sentence, tokenizer):
    toks = tokenizer([sentence], return_tensors="pt")
    len_seq = len(toks.input_ids[0])
    out = np.zeros((len_seq, len_seq))
    for i in range(1, len_seq - 1):
        out[i, i + 1] = 1
    out[0, 0] = 1
    out[-1, 0] = 1

    return "Next Head Attention Pattern", out

---

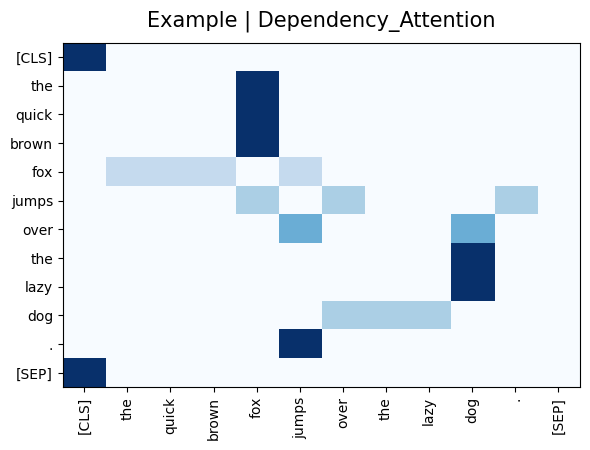

# 2/3. DEPENDENCY ATTENTION PROGRAM
# Program Goal: assigns bidirectional uniform
# attention to tokens based on sentence dependency tree.

def dependencies(sentence, tokenizer):
    toks = tokenizer([sentence], return_tensors="pt")
    len_seq = len(toks.input_ids[0])
    out = np.zeros((len_seq, len_seq))
    doc = nlp(" ".join(sentence.split()))
    for stok in doc:
        parent_index = stok.i
        for child_stok in stok.children:
            child_index = child_stok.i
            out[parent_index+1, child_index+1] = 1
            out[child_index+1, parent_index+1] = 1
    out[0, 0] = 1
    out[-1, 0] = 1
    out = out / out.sum(axis=1, keepdims=True)
    return "Dependency Parsing Pattern", out

---

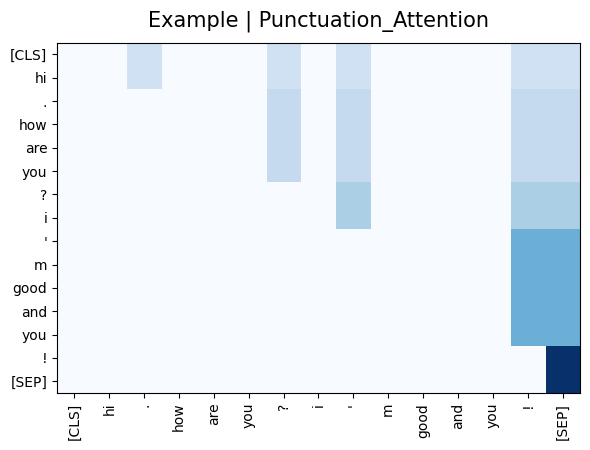

# 3/3. PUNCTUATION ATTENTION PROGRAM
# Simple Program: assigns uniform attention to the
# upcoming punctuations in a given sentence.

def punctuation_attention(sentence, tokenizer):
    toks = tokenizer([sentence], return_tensors="pt")
    len_seq = len(toks.input_ids[0])
    out = np.zeros((len_seq, len_seq))
    words = tokenizer.convert_ids_to_tokens(toks.input_ids[0])
    punctuation_set = set('!"#$%&\'()*+,-./:;<=>?@[\\]^_`{|}~')
    punctuation_indices = [i for i, tok in enumerate(words) if any(p in tok for p in punctuation_set)]
    for i in range(len_seq):
        future_punct = [j for j in punctuation_indices if j > i]
        if future_punct:
            for j in future_punct:
                out[i, j] = 1.0
            out[i] /= out[i].sum()
        else:
            out[i, i] = 1.0
    out += 1e-4
    out = out / out.sum(axis=1, keepdims=True)
    return "Punctuation Pattern", out

---

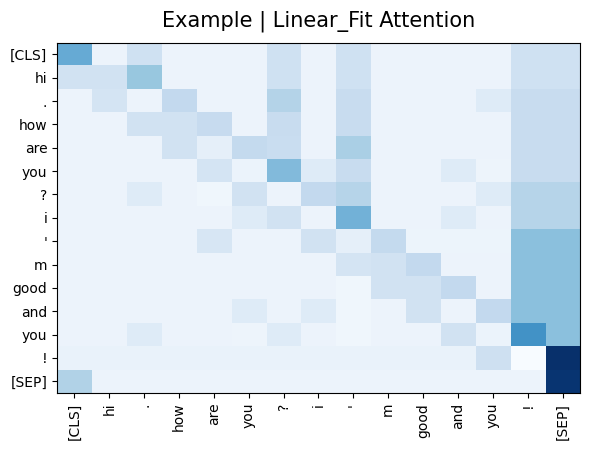

# EXTRA - LINEARLY FIT ATTENTION EXAMPLE:
# Example of linearly combining programs for a better fit:

def linear_fit(sentence, tokenizer, patterns, y):
    X = []
    for pattern in patterns:
      X.append(pattern(sentence, tokenizer)[1].flatten())
    X_n = np.array(X).T

    reg = LinearRegression().fit(X_n, y.flatten())
    out = reg.intercept_ + sum(coef * mat for coef, mat in zip(reg.coef_, X))

    len_seq = len(tokenizer([sentence], return_tensors="pt").input_ids[0])
    out = out.reshape((len_seq, len_seq))
    out = out / out.sum(axis=1, keepdims=True)
    return "Linear Fit", out, reg.intercept_, reg.coef_

FUTURE STEPS

As of 8/1/2025 →

• Automation:
    Expand on currently implemented automated (LLM-generated) programs
  1. First, manually implement additional programs to start a program database
  2. Then, run the following pipeline to augment database & improve LLM programs
     • Sample attention heads that best_fit & linear_fit do not fit well
     • Generate hypothesis and program using data and validate hypothesis
     • Add program to the database and rerun cycle


• Inference-Time Analyses (Some Questions):
  Run experiments for the following questions
  • Do heads take on the same function across all sentences & all types of sentences?
  • Do these programs emerge in different models? Are there programs which only exist in bigger LLMs?
  • Do head functions emerge over time during training? If so, when and which ones?
  • If heads can change function, is there a correlation between what it is & other patterns the head takens on?


• Structured Evaluation:
   Explore program / function compositions
    - Determine which programs are co-occuring in heads & develop a composition tree from program database
   Expand on existing Chain-of-Thought (COT) Implementation
    - Continue comparing activations in Question-Answering contexts when LLMs are given misleading hints
